SPECIFICATIONS

Model no. RL-40247

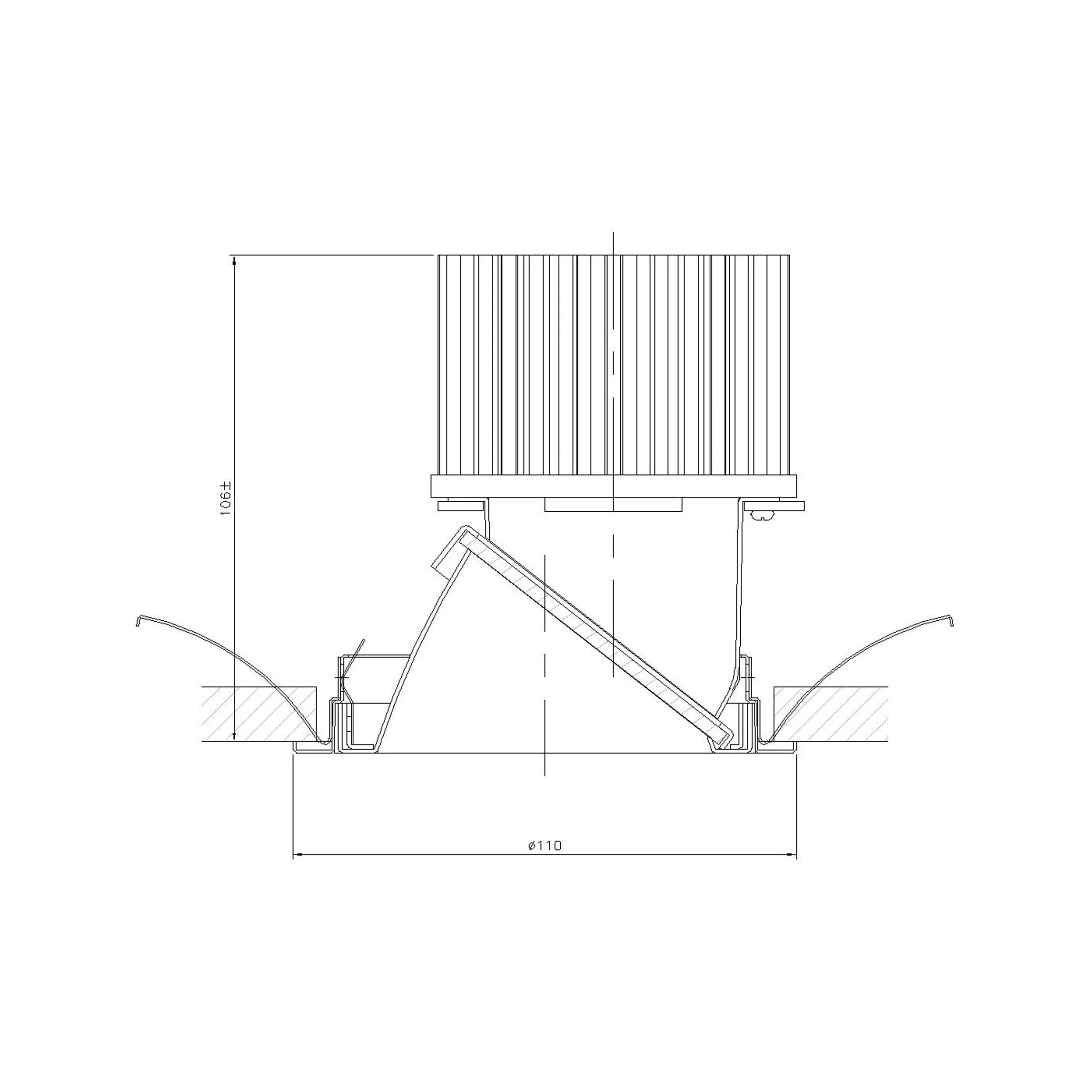

Dimension (mm) 110Dia x 106H
Cutout 105mmDia

Reflector Dark light reflector
LED TYPE Citizen
Wattage 12W/ 15W/ 20W

Lumen 12W: 708lm
15W: 897lm
17W: 960lm

Efficiency 12W: 59lm/W
15W: 59lm/W
17W: 56lm/W

CCT 2700K, 3000K, 3500K, 4000K
Ra. 90+

Installation

Mounting Recessed
Ceiling Thickness 10-25mm
LED Driver Remote
Dimming Non-dim/ DALI/ 0-10V/Phase Dim

Remarks:
The above figures are calculated based on the nominal lumen and wattage value.
The above figures are based on CCT 2700K
