RL-40250 | Ø137mm | Fixed Downlight
SPECIFICATIONS
Model no. RL-40250

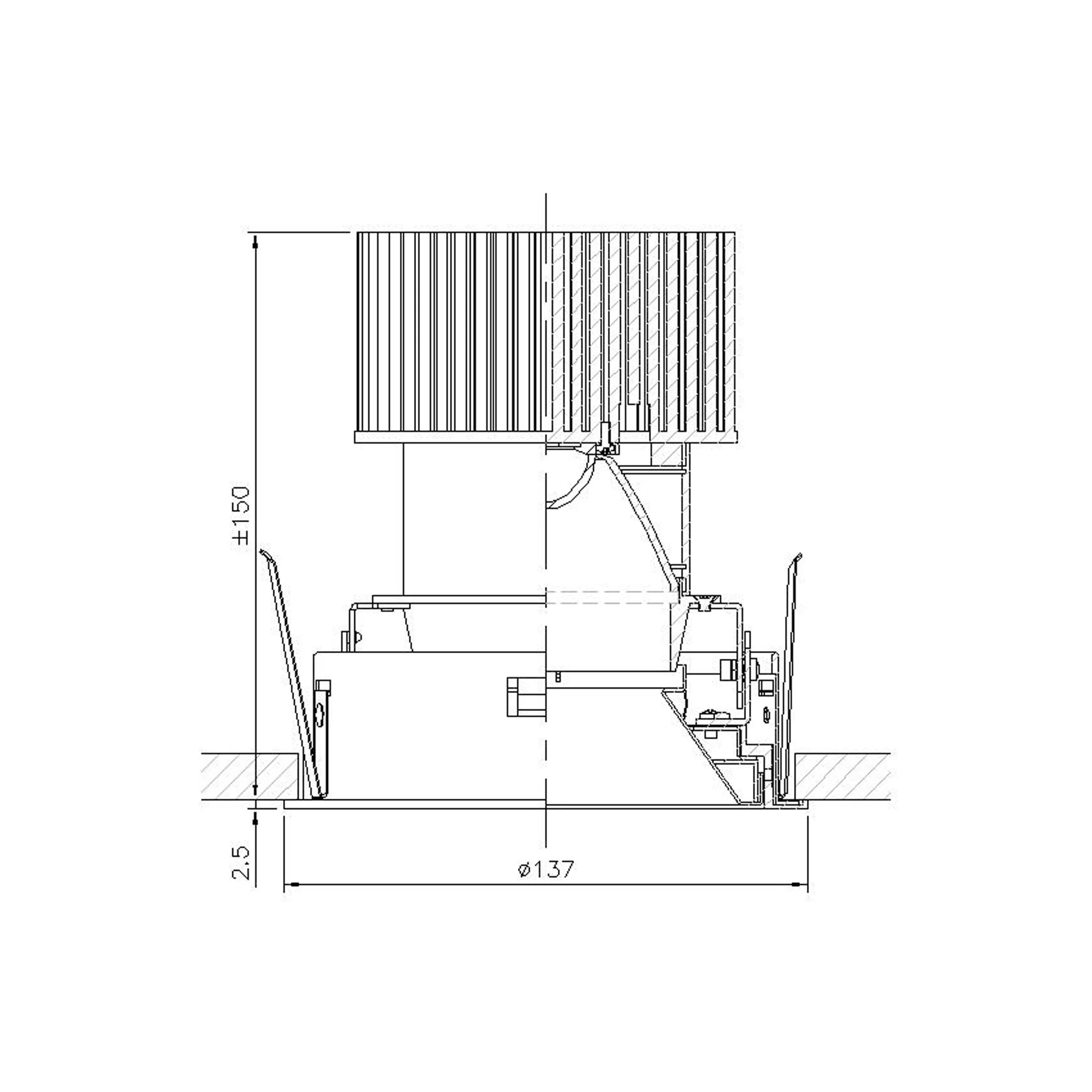

Dimension (mm) 137Dia x 150H
Cutout 127mmDia
Cutoff angle 30°
Reflector Dark light reflector
LED TYPE Citizen
Wattage 20W/ 25W/ 30W
Beam angle 16°/ 23° /32°
Lumen 20W: 1326/ 1413/ 1342 lm
16°/ 23° /32° 25W: 1617/ 1646/ 1572 lm
30W: 2023/ 2005/ 1930 lm
Efficiency 20W: 66/ 70/ 67 lm/W
16°/ 23° /32° 25W: 64/ 65/ 62 lm/W
30W: 67/ 66/ 64 lm/W
CCT 2700K, 3000K, 3500K, 4000K
Ra. 90+
Installation
Mounting Recessed
Ceiling Thickness 10-25mm
LED Driver Remote
Dimming Non-dim/ DALI/ 0-10V/Phase Dim
Remarks:
The above figures are calculated based on the nominal lumen and wattage value.
The above figures are based on CCT 2700K
