SPECIFICATIONS

Model no. RL-40270
Dimension (mm) 86Dia x 96H
Cutout 80mmDia
Cutoff angle 30°
Reflector Matt white/ Matt black reflector
LED TYPE CREE
Wattage 5W/ 7W

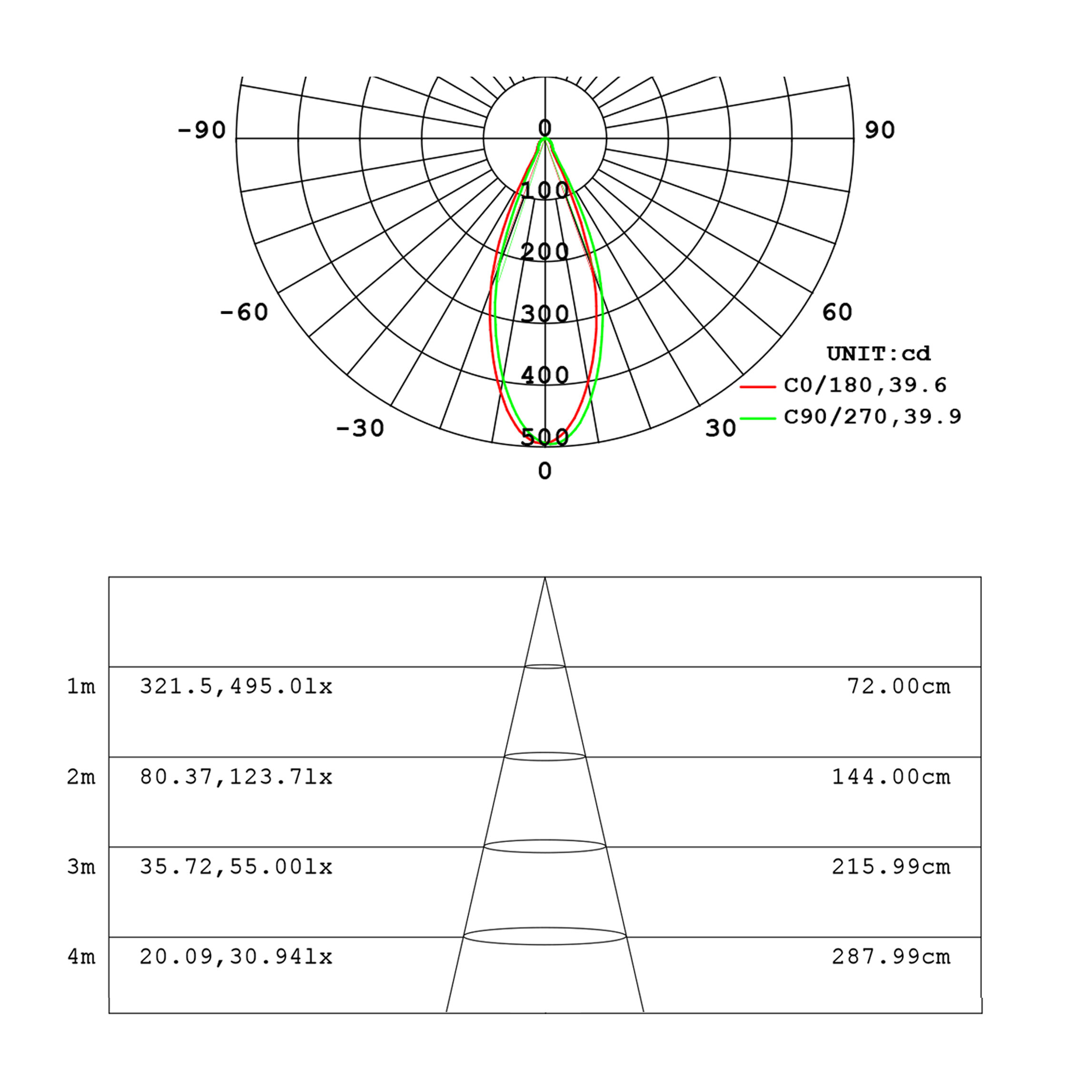

Beam angle 36°/ 40° /45°

Lumen 5W: 249/ 243/ 239 lm
36°/ 40° /45° 7W: 305/ 311/ 299 lm

Efficiency 5W: 49/ 48/ 47 lm/W
36°/ 40° /45° 7W: 43/ 44/ 42 lm/W

CCT 2700K, 3000K, 3500K, 4000K
Ra. 90+

Installation

Mounting Recessed
Ceiling Thickness 10-25mm
LED Driver Remote
Dimming Non-dim/ DALI/ 0-10V/Phase Dim

Remarks:
The above figures are calculated based on the nominal lumen and wattage value.
The above figures are based on CCT 2700K
