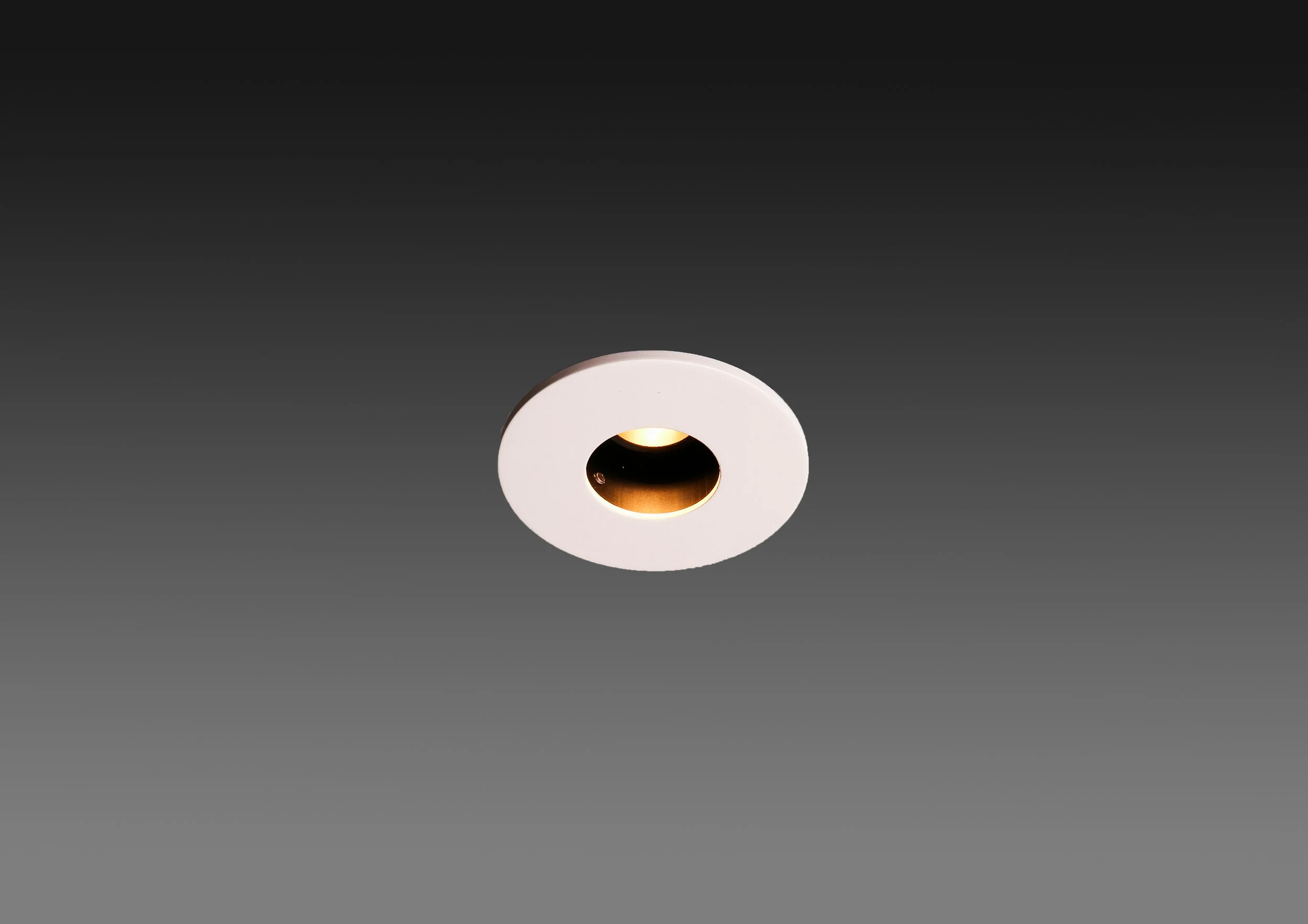

RL-40287 | Ø65mm |Adjustable Downlight

SPECIFICATIONS

Model no.
RL-40287
Dimension (mm) 65Dia x 95H
Cutout 57mmDia
Cutoff angle 30°
Tilting angle
18°
LED TYPE CREE
Wattage 7W
Beam angle 12°/ 16°/ 22°/ 30°

Lumen
480/ 443/ 452/ 415 lm
12°/ 16°/ 22°/ 30°

Efficiency 66/ 61/ 62/ 57 lm/W
12°/ 16°/ 22°/ 30°

CCT 2700K, 3000K, 3500K, 4000K
Ra. 90+

Installation

Mounting Recessed
Ceiling Thickness 10-25mm
LED Driver Remote
Dimming Non-dim/ DALI/ 0-10V/Phase Dim

Remarks:
The above figures are calculated based on the nominal lumen and wattage value.
The above figures are based on CCT 2700K
