RL-45016 | Ø138mm | Adjustable Downlight
SPECIFICATIONS
Model no. RL-45016
Dimension (mm) 62Dia x 78H
Cutout 55mmDia
Cutoff angle 30°
Tilting angle 20°
Reflector Chrome/ White/ Black
LED TYPE CREE
Wattage 4.5W

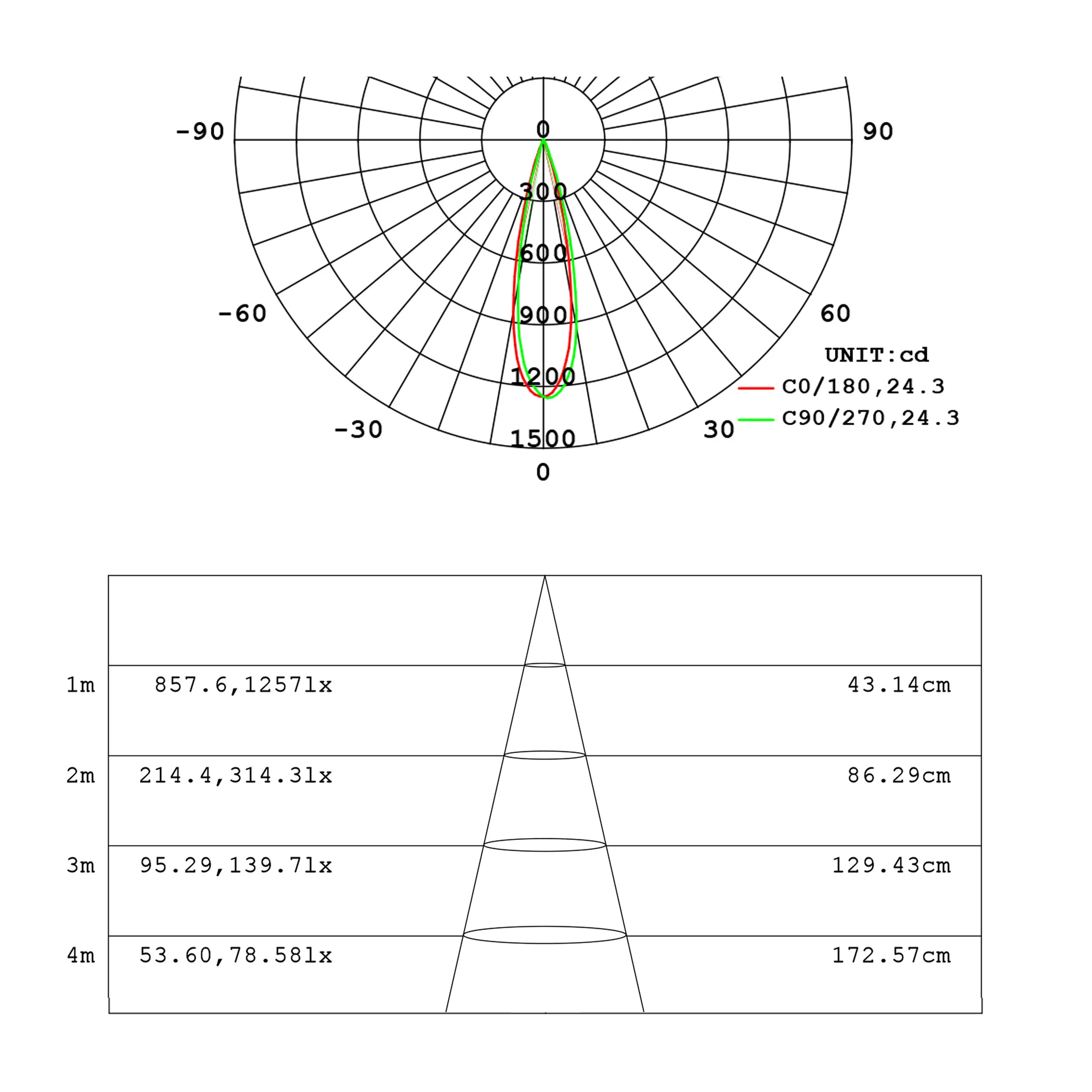

Beam angle 15°/ 24° /36°
Lumen 167/ 232/ xxxlm
15°/ 25° /35°
Efficiency 37/ 51/ xxxlm/W
15°/ 25° /35°
CCT 2700K, 3000K, 3500K, 4000K
Ra. 90+
IP 20
Installation
Mounting Recessed
Ceiling Thickness 10-25mm
LED Driver Remote
Dimming Non-dim/ DALI/ 0-10V/Phase Dim
Remarks:
The above figures are calculated based on the nominal lumen and wattage value.
The above figures are based on CCT 2700K
Numbering System e.g. RL-45024-27-28-15-nd
| Model Number | - | Colour Temperature | Wattage | Beam Angle | - | Dimming |
|---|---|---|---|---|---|---|
| RL-45024 | 27: 2700K | 10: 10W | 15 | Nd-no-dimming | ||
| 30: 3000K | 25 | 0-10: 0-10V | ||||
| 40: 4000K | 35 | 220: Phase dimming | ||||
| DALI: Dali Dimming |
